Cabling the Print Head

• nixalReprapHeadCon in Google Sheets

RAMPS connection

For the RAMPS cabling I used below links

• Ramps 1.4 Firmware and Fan configuration
• Enable Auto Leveling for your 3D Printer with an inductive sensor (Marlin Firmware)
• SoliForum - 3D Printing Community → 3D Printer Discussion → Sintron Delta Build - Buyer Beware!
• GeetechWiki Ramps1.4

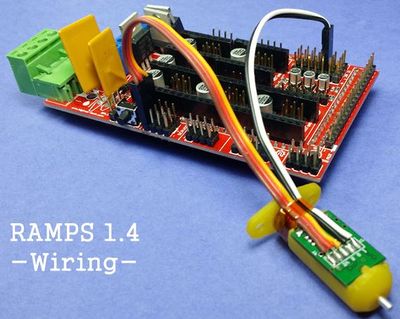

BLtouch

• BL-Touch
• Introducing.... BLTouch - Autoleveling Sensor for 3D Printers

• TEVO Tarantula BLTouch Setup

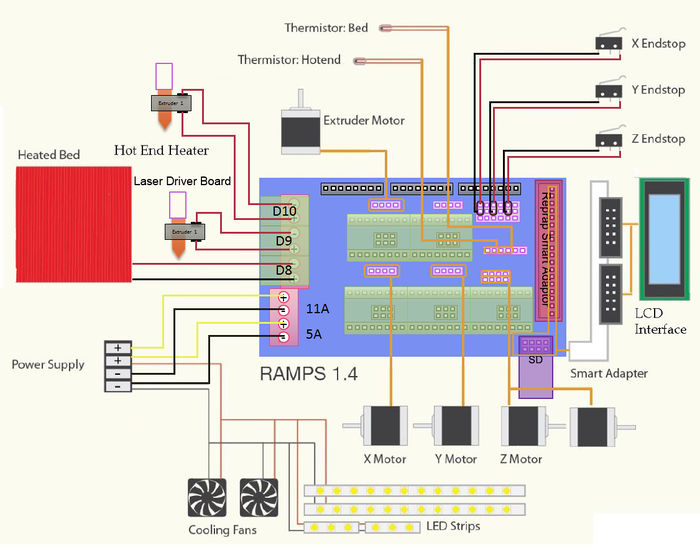

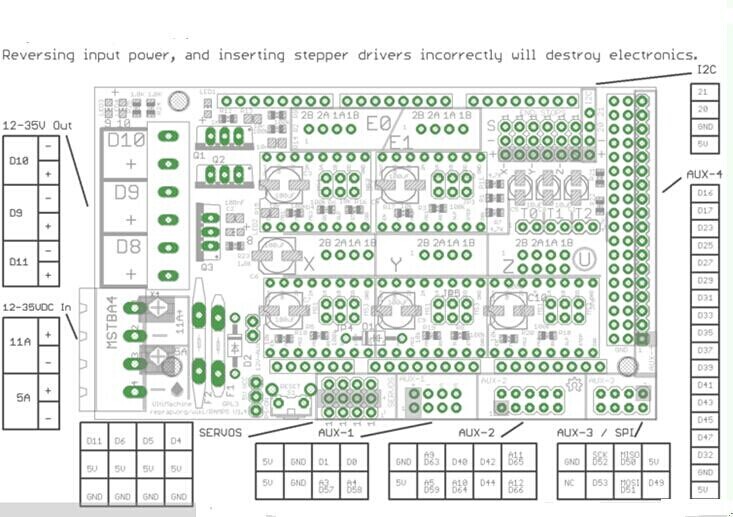

Ramps

• Collection of Ramps wiring diagrams

PSU

• RAMPS 1.4 RepRap

• PSU 12V: at both 12V inputs of the plug-jack connector

Motor Drivers

• step size jumpers: Use all 3 for every stepStick [if forgotten, then motors (try to) run too fast]

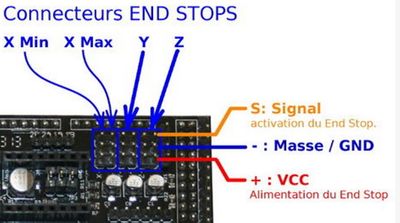

EndStops

• From 3D-OrdBot-Ramps:

Dual Z drivers

• Dual Z drivers setup in firmware

In Marlin source code in file Configuration.adv.h, search for

#define Z_DUAL_STEPPER_DRIVERS
