Simple high voltage inverter

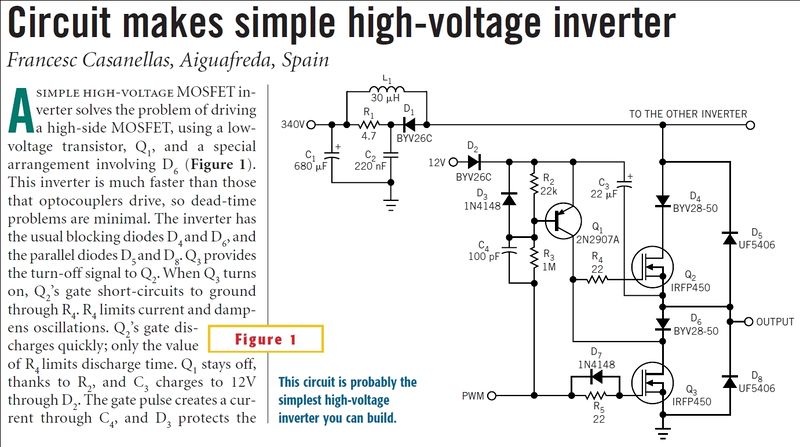

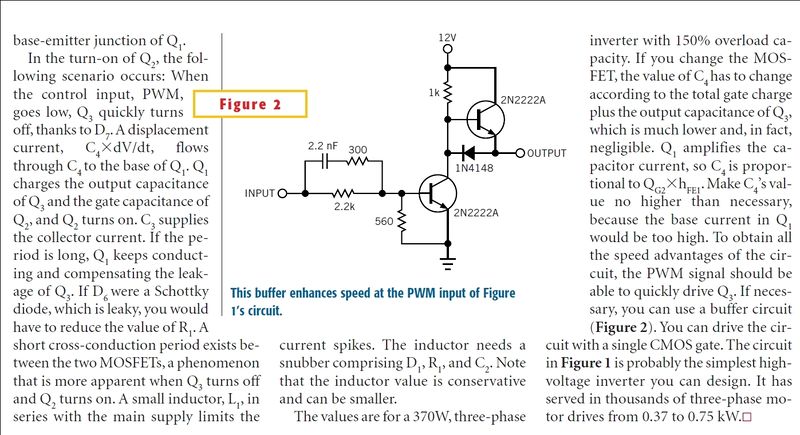

EDN article

• EDN article

• In PDF

• Writer home

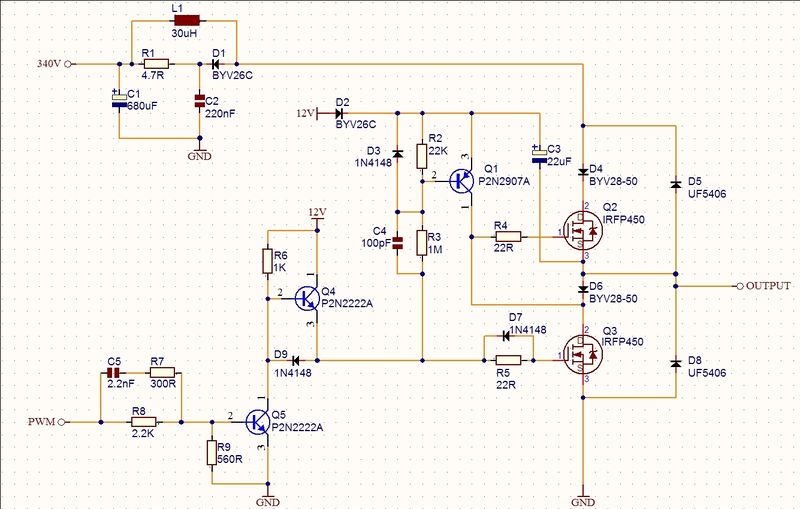

My Implementation

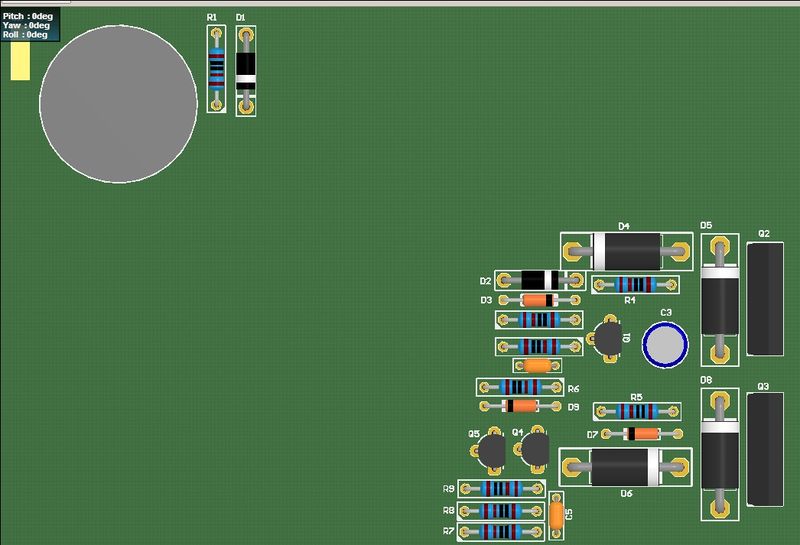

• PCB project created 2011.07.14

Parts

• IRFP450APBF MOSFET N-CH 500V 14A TO-247AC digikey price $4.84 @1pc

• SBYV28-50-E3/54 DIODE 3.5A 50V 20NS DO-201AD digikey NO-STOCK
• ES3B DIODE FAST 3A 100V SMC digikey price $0.62 @1pc

• UF5406-E3/73 DIODE 3A 600V 75NS UF digikey NO-STOCK
• MURS360-E3/57T DIODE ULTRA FAST 3A 600V SMC digikey price $0.8 @1pc
